3D PodoScanner

3D TECHNOLOGY FOR THE PRODUCTION OF ORTHOTIC INSOLES

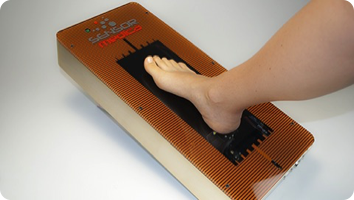

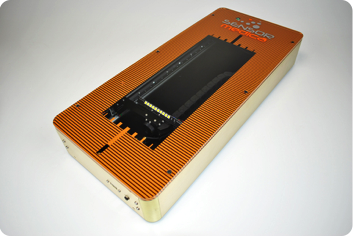

3D podoscan and 3D foamscan are high definition optoelectronic devices for 3D acquisition of foot morphology. 3D podoscan has a precision of 1 mm, allows acquisition the foot image in off load, semi load and under load. 3D foamscan acquire the foot cast inside the foam box, cleans the image and automatically identify left and right foot.

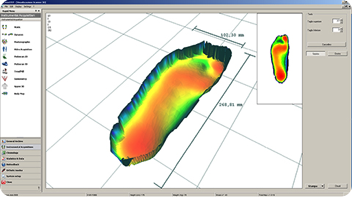

Both devices are principally used for customized orthotics production and, combined with foot pressure data acquired with baropodometric platforms, allows the correct orthotic to be designed to satisfy the patient’s needs. Acquired images are managed inside freestep software and immediately exported in our 3D modelling software easycad. In addition, the images can be used for manufacturing foot casts.


Technical Specification


0,1mm Accuracy

Full intergration into FreeSTEP

1 Click transfer to EasyCAD

Foot plantar Non/Semi/Full-Weight

Foam impression and plaster cast

2.9 sec or 5.8 sec includes color

Normal office lighting, no d'rk room

Cle'n 3D mesh, +/- 1.0mm Accuracy

3D (STL/WRL), 2D color (plantar and heel)

Foot metrics, shoe size, arch type, heel type

Foot report and annotation with diagnosis

Heel laser and camera for heel analysis

FTP send order to orthotic fabrication.

Size/Weight 600 X 265 X 90 mm / 6.8 Kg

Load Capacity 150 Kg

AC 120~240V 50/60HZ

One year warranty
